Overview
Item Overview

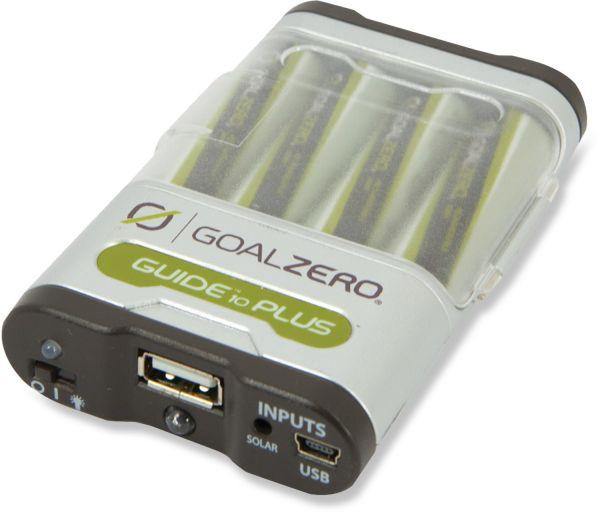

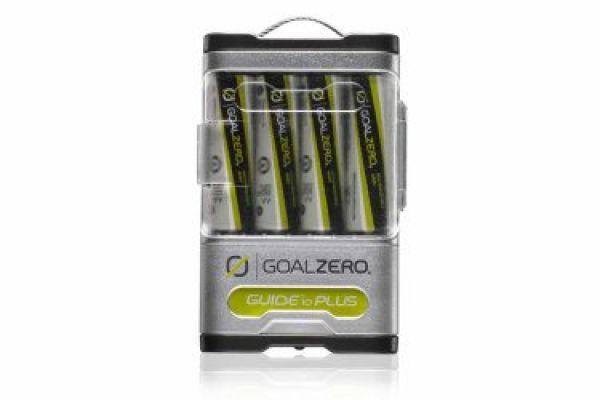

With the Goal Zero Guide 10 Plus Recharger, you have a portable, rugged charging kit as adventurous as you are.
Charge AAs from the sun or any USB port, then power your GPS, phone, MP3, or perk up your tablet in a pinch.

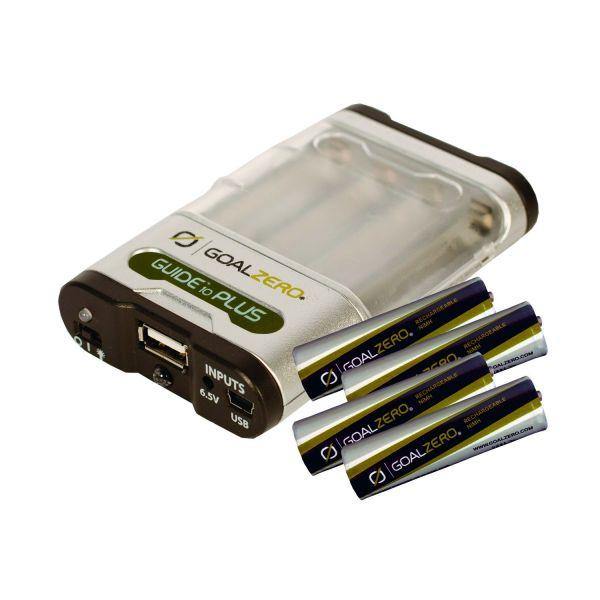

Includes: Guide 10 Plus Recharger, four AA rechargeable batteries, one AAA adapter, USB cable.

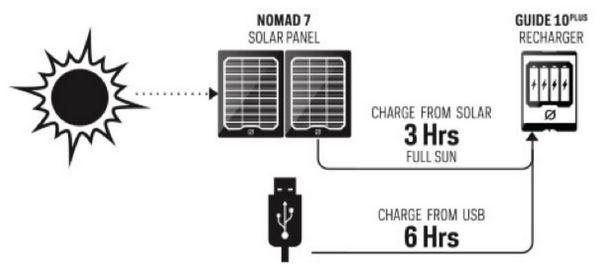

Charge from a USB socket or the sun
The Sun
The Goal Zero Guide 10 Plus can be charged by connecting a compatible solar panel (not included with unit but add Nomad 7 Solar Panel)
USB
The Goal Zero Guide 10 Plus can also be charged by being plugged into a USB power source.
Powering
The guide 10 Plus Powers Your Device in 2 Ways:
Removable AA/AAA Batteries
The removable batteries are perfect for your GPS, headlamps, flashlights and more.
USB
The USB port best charges all your smaller USB powered devices.
Specs
Charge Times
USB Power Source: 6-10 hours
Wall: n/a
Car: n/a
Nomad 7 Solar Panel: 3-6 Hours
Nomad 13 Solar Panel: 2.5-5 Hours
Ports
USB Port (output): 5V, up to 1A (5W max), regulated
USB Port (input): 5V, up to 0.8A (4W max), regulated
Mini solar port (input): 6.5V, up to 1.1A
Battery Details
Battery Type: NiMH
Battery Size: 11Wh (4.8V, 2300mAh)
Lifecycles: 500 cycles
Shelf-life: Keep plugged in, or charge every 3-6 months
Fuses: none
Management system Charging and low-battery protection built-in
Product SKU: 21005
Chainable: No
Weight (w/batteries): 6.4 oz (181 g)
Dimensions: 2.5 x 4 x 0.75 in (6.4 x 10.2 x 1.9 cm)
Operating usage temp.: 32-104 F (0-40 C)
Certs: CE, FCC, ROHS
Warranty 6 months
Light Detail
LED Output: 100mW, white LED
FAQ's
1. What batteries can be used in the Guide 10 Plus?
Any AA or AAA NiMH batteries can be used and recharged. We do not recommend other types of batteries. 4 same-sized batteries MUST be charged at once, but not all batteries need to be empty.
AAA cells are sold separately and come with an adapter to use with the Guide 10 Plus.
2. How do I charge the Guide 10 Plus?
From Solar: Use Goal Zero Nomad 3.5 or Nomad 7 with solar charge cable for fast charging. From USB: Use any USB power source, such as a computer or any Goal Zero power pack.
3. Is the Guide 10 Plus waterproof?
No, but it is weather-resistant. Care should be taken to shield if from direct sunlight and the elements. Unexpected rain storms probably won't harm it.
4. How is the Guide 10 Plus protected?
Useage is plug-and-play. The built-in battery management system prevents over-charging and over-discharging of batteries. The USB output will only supply the amount of power needed.
